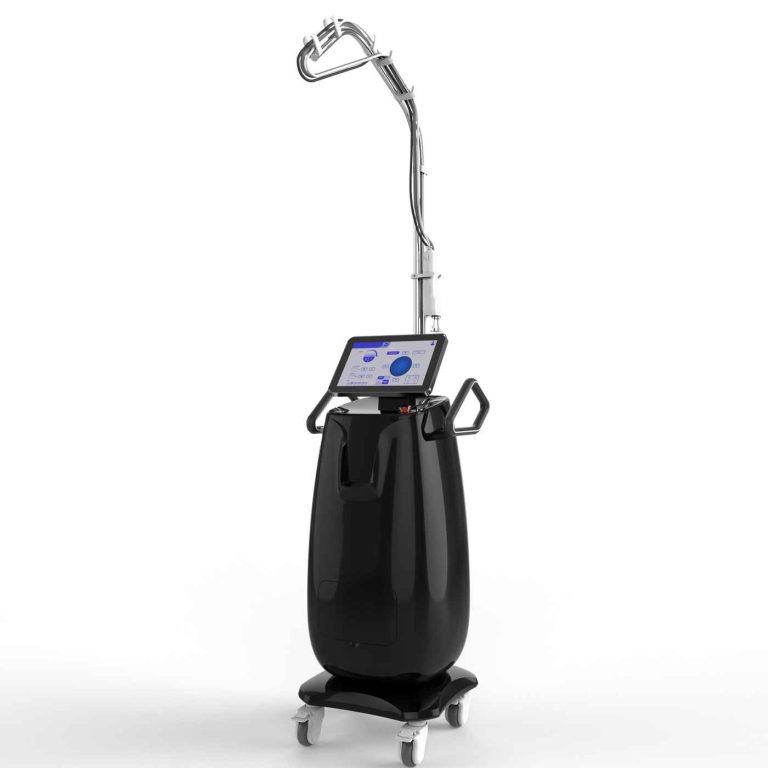

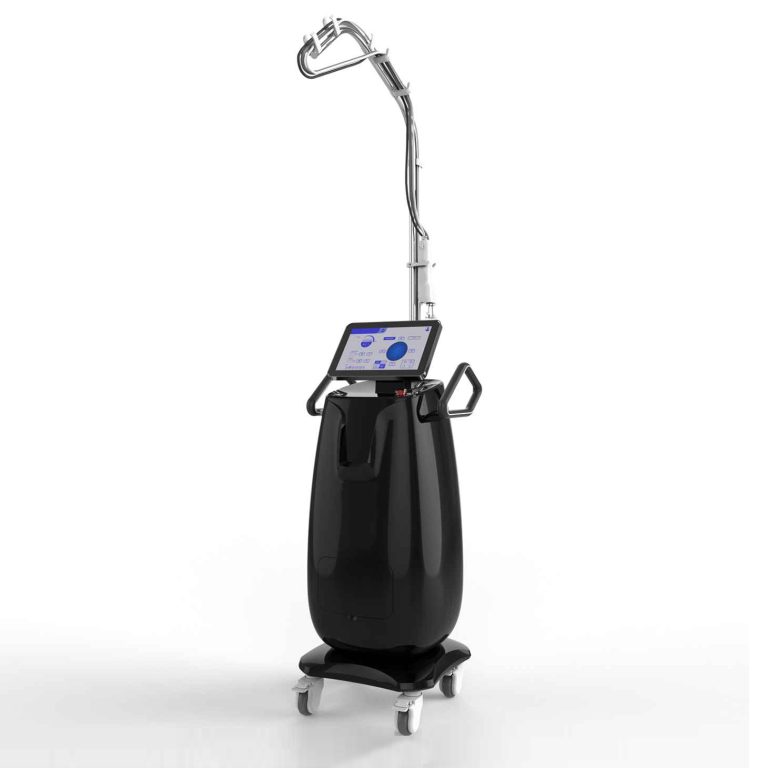

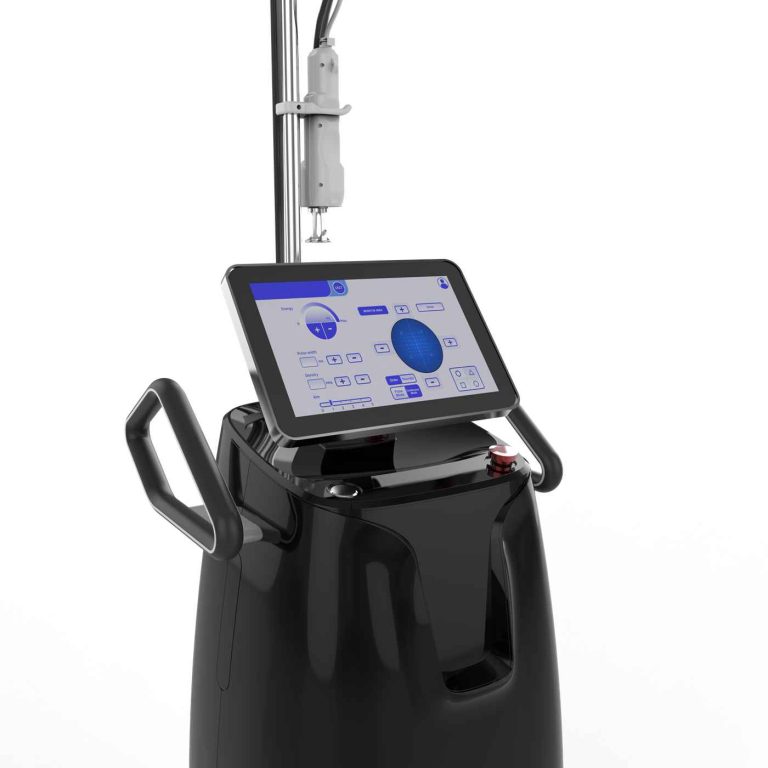

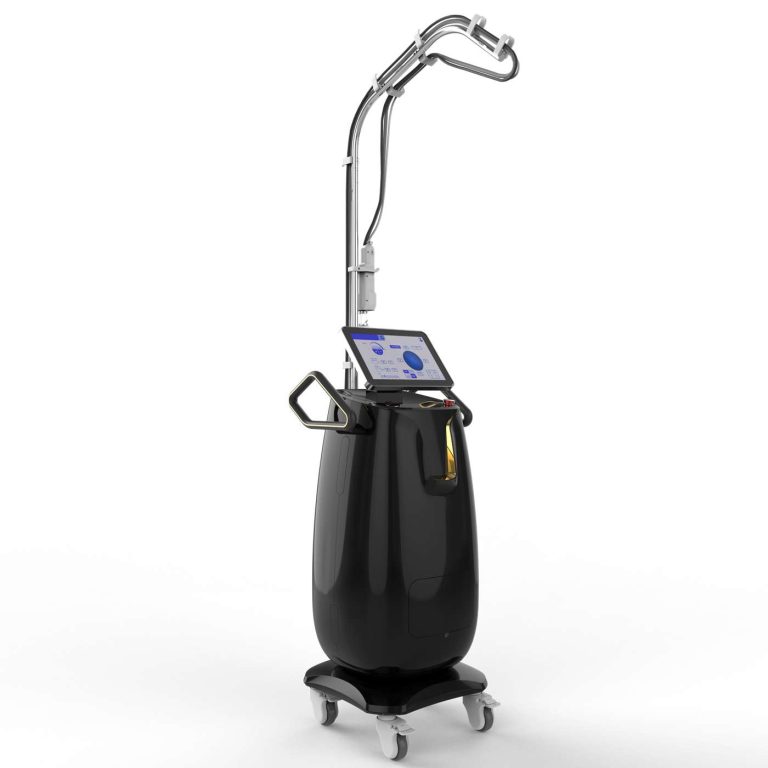

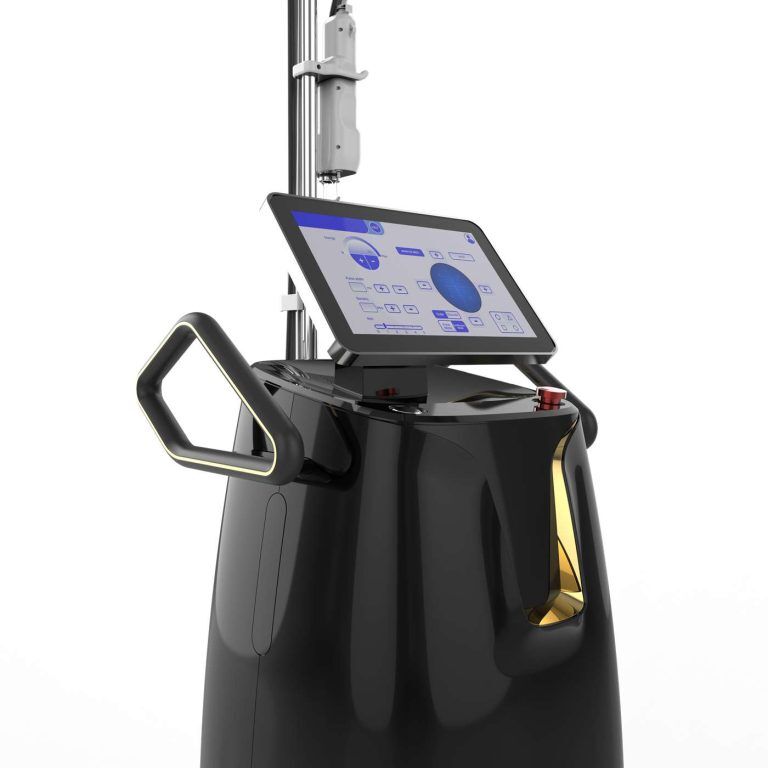

ThuliWave® 1927nm Thulium Laser Non-Ablative Sub-Ablative Fractional Skin Resurfacing Laser Machine

Brief Introduction:

Dramatically different from traditional resurfacing lasers, ThuliWave® 1927nm Thulium Laser Skin Machine rebuilds glowing, healthy skin through gentle, nonablative or subablative fractionated treatments.With treatments that are tunable from mild to aggressive and extremely cost-effective, ThuliWave® 1927nm Thulium Laser Skin Machine offers customized outcomes with virtually no downtime for all patients, all year round. ThuliWave® 1927nm Thulium Laser Skin Machine’s new display provides the user with valuable feedback so practitioners consistently achieve excellent results.

Theory:

The 1927nm laser primarily affects the lower epidermis and upper dermis, where pigmentation and skin problems such as discoloration, wrinkles and laxity are primarily found. Thulium Laser  1927nm is higher water absorption than Er:Glass(1550nm) about 10 times, less than CO2 laser about 24 times. The primary target tissue of thulium laser in thes kin is water. By heating the water in the dermis, the thulium laser can achieve various therapeutic purposes, such as pore contraction, skin tightening and anti-aging,inflammation elimination, and removal of red blood vessels.

Features:

1. Treat diverse indications by separate setting of “Pulse duration”and “Power”
2. Low maintenance cost owing to Non-consumable and long life time of Thulium fiber.
3. Facilitate both characteristics between ablative and non-ablative
4. Various sizes of tips and roller tip
5. Highest power.Fast treatments. Customizable for multiple areas.
6. Gentle, effective global improvement for all skin types.
7. Comfortable treatment. Low downtime. Immediate results.
8. Minimal cost of ownership. Easy to delegate.No shot limit per procedure.

Technology:

1. Deliver a maximum power of 20W
2. Top-Hat beam profile for the fastest and most incomparably consistent treatments
3. Increase permeability with minimal thermal disruption of the stratum corneum. Improve skin texture.
4. The maximum depth of ablative is 200-300um. For superficial epidermal pigmented lesions.

Er: Glass 1550nm laser VS 1927nm Thulium Laser VS Fractional CO2 10600nm Laser:

1. Er: Glass 1550nm laser: Thermal effect to dermis. Inducing protein denaturalization. Mainly for skin rejuvenation. Less downtime.

2. 1927nm Thulium Laser: Target to the junction between epidermis and dermis. Coagulation and denaturalization. Mainly for whitening skin. Less downtime.

3. Fractional CO2 10600nm Laser: Skin resurfacing and rejuvenation. High risk, high return. Prone to PHI. Longer downtime than non-ablative.

Handle & Tips & Interface:

1. Ergonomic Designed Handpiece

2. Multi-Treatments With Replaceable Tips: TIP 10MM, TIP 15MM, TIP 20MM, TIP 30MM.

3. The 200 um beam diameter. Full face treatment in 6-8 min

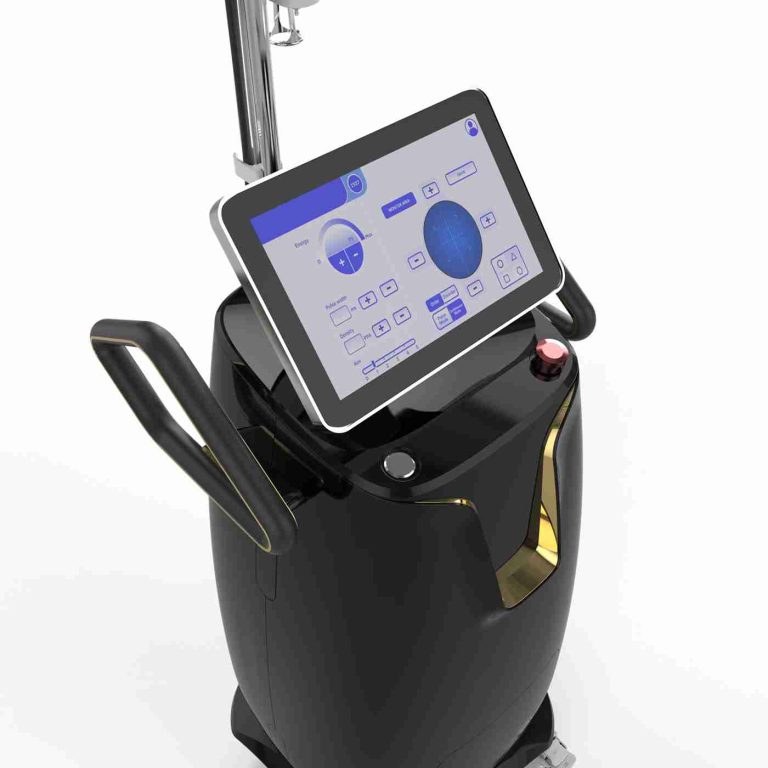

4. Intuitive graphical user interface, Easy-to-navigate. Ultra clear display. Support Print your Brand logo on the machine appearance even in software.

Machine Diagram：

1. Flexible tube and rack

2. Replaceable tips

3. User friendly interface

4. Ergonomic Designed Hand Piece

5. Active Emergency System

Treatment:

1. Reduce Acne Scars
Acne scars are permanent textural & indentations on the skin. The scars usually appear after severe acne.Thulium 1927 Laser can effectively treat light acne scarsthrough collagen production with noticeable results.

2. Skin Tightening

Similar to dull skin, the collagen production in our skin will decrease over time. The lack of collagen will result skin sagging.The thermal energy from the laser will activate collagen production in the skin allowing an overall skin tightening effect.

3. Skin Brightening Glow
Due to dead skin cells and late nights, our skin will appear dull overtime. The lack of hydration from improper maintenance will form a layer of free radicals affecting the health of the skin.The laser will delivers beams to gently peel the top layer of the skin, allowing new skin to grow. This result in a brightening effect on the skin.

4.Refining Enlarged Pores

Enlarged pores are usually caused by excess sebum,The accumulated sebum in the pores will cause it too lose elasticity, resulting in larger & visible pores.The thermal effect of laser treatment reduces pore size & inflammatory acne while stimulating collagen growth to refine pores.
